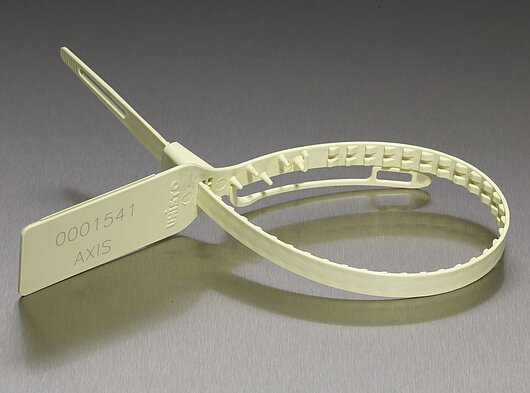

Unisto Axis

One piece plastic Security Seal. Ideal solution to seal all kind of bags in the Post, Courier Services and Cash in Transit sectors. Even Roll Cages can be ideally sealed with our Unisto Axis. Due to the massive strap design (8.0 x 2.2 mm) suitable for rough handling. Consecutive numbering or barcoding enables easy recording of the seal number and streamlines operations. Optional tear off version supports easy removal. Available in a range of plastic colours. Ideal and ease of recycling with only a sinlge plastic component. Ideal and ease of recycling with only a single plastic component.

Unisto Axis - Security Seals
Unisto Axis - Security Seals
Unisto Axis - Security Seals
Unisto Axis - Security Seals

Features of this security seal

Type of Seal
Adjustable Length Seals
Application
Bags
  • One-piece moulded seal makes recycling effort easy.
  • Unique designed locking mechanism which firmly secure the seal in position to eliminate any possibility of the seal being pulled out or pseudo sealing.
  • Groove on the ribbon to prevent sealing from the reverse direction.
  • Tear-off facility allows easy removal of seal.
  • Barcoded numbering for fast, accurate reliable data capture and streamlining operations.
  • Various colours for logistical functions.
  • Customer name/logo for clear identification.

Dimension Drawing

Specification

Materials
Polypropylene (PP)
Tensile strength
Approx. 46 kg
Numbering
Up to max. 7 digits
Barcoding

Barcoding Interleaved 2/5 or barcode 128

Others on request

Customer name/logo
Foil printed, directly lasermarked
Plastic Colours (foil)
Red, Blue, Yellow, White & Green
Plastic Colours (laser)
Pink, Light Blue, Light Yellow, Light Green & White
Packing
Mats of 10 pieces, box of 1000 seals
Packing size
box300mm with tear-off480 x 270 x 490mm6.6kg
300mm without tear-off390 x 390 x 383mm6.3kg
Storage
Seals should be stored in original box away from direct sunlight and chemical fumes. Store at 22°C/50% RH. Typical shelf life of seals made of PP and PA are approx. 18 months from date of manufacture. Nevertheless please do not order more than an annual quantity.

How to close

How to open
