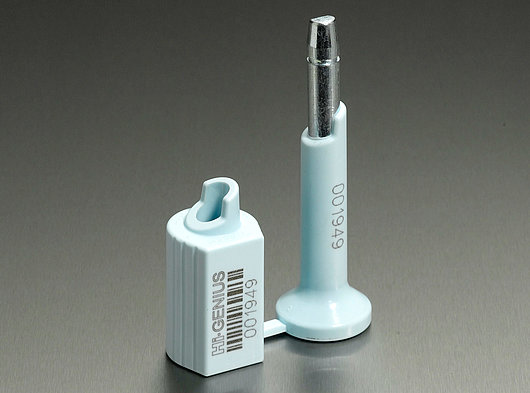

Unisto Hi-Genius

The ISO 17712 certified and C-TPAT compliance High Security Bolt Seal is the number one solution to seal Freight Containers, Truck Doors, Trailers and Goods Wagons. Very popular in the Shipping, Transport, Air Cargo and Retail industries. A tensile strength of more than 1000 kg prevents opportunistic theft. Removal requires special bolt cutters. Permanent marking of customer name and consecutive numbering or barcode for fast, accurate data capture. Available in a range of plastic colours.

Certificate ISO 17712 Hi-Genius

Certificate ISO 17712 Hi-Genius (bare-pin)

Features of this security seal

Type of Seal
Bolt Seals
  • Interlocking petals when closed provides evidence of attempted tampering by spinning
  • Steel locking body increases security level
  • Steel components excel the requirement of a minimum diameter of 18 mm
  • Pulling force 1‘000 kg minimum prevents opportunistic theft
  • Customer name /logo for clear identification
  • Laser engraved numbering - impossible to change, increases security leve
  • Numbers on bolt and body prevents substitution of component parts
  • Hi-Genius is fully ISO 17712:2013 compliant, incl. clause 6 “Testing for Evidence of Tampering”
  • available in ABS coated steel pin or bare steel pin configurations

Bolt: steel, silver zinc pattern

Body and spring: steel

Coating: Acrylonitrile Butadiene Styrene (ABS)

Tensile strength
Above 10 kN (1000kg)
up to max. 7 digits
barcode 128, interleaved 2/5, others on request
Customer name/logo
Directly laser marked
Plastic colours (laser)
blue, yellow, green, white, pink
Tray - 10 pieces per tray, 200 seals per carton Box - 20 pieces per box, 200 seals per carton
Packing size
inner box 280 x 59 x 87 mm
cartontray type405 x 210 x 215mm16.0kg
box type310 x 298 x 190mm17.7kg

How to close

How to open

Unisto Hi-Genius - Security Seal

Our ISO 17712 certified and C-TPAT compliance High Security Bolt Seal.
